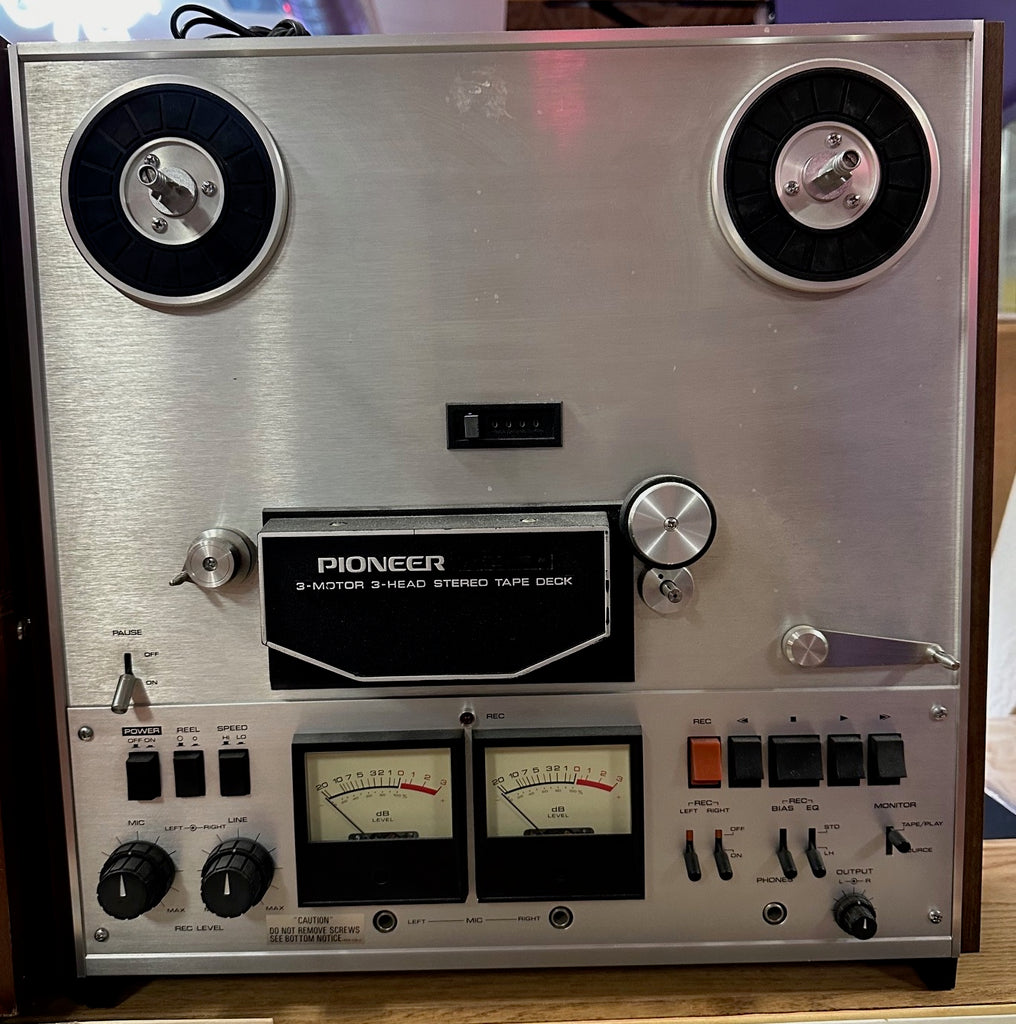

Pioneer RT-1011L (POWERS ON AS IS )

3 Motor 3 Head Stereo Tape Deck (1974-80)

POWERS ON - AS IS

Located: Armitage

Description

Pioneer's engineering policy assures reliable operation and quality performance from the new RT-1011L 4-track stereo tape deck.

A thick 5mm front suspension panel and solid, die-cast framework provide extra strength margin for the 10-1/2 inch reel load and stable tape transport system.

Wow and flutter is reduced by the precision 4/8-pole hysteresis synchronous capstan drive motor, coupled with a "tuned" 100mm flywheel and high-precision 0.2u error capstan. A high-torque 6-pole induction motor ensures optimum tape tension.

The 2-channel 4-track recording and playback heads are hyperbolic for superb tonal quality, ideal head-to-tape contact, and exhibit excellent electromagnetic characteristics. All three heads are arranged in a short tape path to enhance stability.

And Pioneer's long experience in tape deck design means top versatility. The RT-1011L includes switched circuits for 2-step bias and 2-step equalization for balanced recordings with any tape.

Advanced design and electronics also means wide dynamic range from the mic / line recording amplifier and offers easy mic / line mixing, solenoid-operated direct-changeable function buttons, auto record facility for use with pre-set timer, large level meters, lockable pause, and more.

Specifications

Track system: 4-track, 2-channel, stereo system

Heads: 1 x record, 1 x play, 1 x erase

Motor: 2 x reel, 1 x capstan

Reel size: up to 10.5 inch reel

Equalization: NAB

Tape speeds: 3 ³⁄₄  7 ¹⁄₂ ips

Wow and flutter: 0.08% (7 ¹⁄₂ ips)

Frequency response: 40Hz to 20kHz (7 ¹⁄₂ ips)

Signal to Noise Ratio: 55dB

Total harmonic distortion: 1%

Crosstalk: 60dB

Input: 50mV (line), 15mV (DIN), 0.25mV (mic)

Output: 0.3V (line), 1.5V (DIN)

Semiconductors: 2 x IC, 2 x FET, 28 x transistors, 46 x diodes

Dimensions: 428 x 431 x 227mm

Weight: 18.6kg
