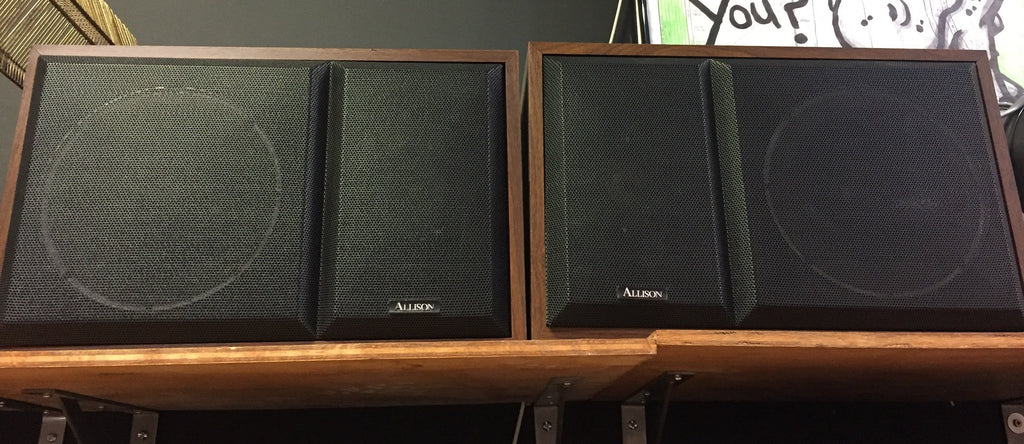

USED - 1989 Allison Acoustics LC110 Wood Bookshelf Speakers (Set of 2)

Swipe left or right to scroll pics

  • USED - 1989 Allison Acoustics LC110 Wood Bookshelf Speakers (Set of 2)
  • USED - 1989 Allison Acoustics LC110 Wood Bookshelf Speakers (Set of 2)
click thumbnails for full resolution

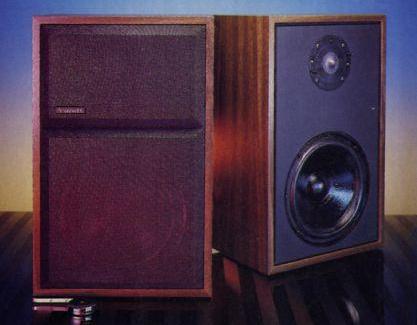

The Allison LC110 is the smallest of the three speakers that make up the company's "Room-Matched" series. These are conventionally constructed, compact, two-way systems that are designed to achieve a proper balance of bass-to-treble energy when they are placed close to one room surface. According to Allison, the best results are obtained with the woofer end of the cabinet resting on the floor, a few feet from the nearest wall and farther away from other walls. The speakers can also be placed on stands, tables, or bookshelves.

The LC110 features the same convex-diaphragm tweeter used in every other Allison speaker. This driver-noted for its wide, smooth frequency response and excellent dispersion-is designed to simulate the motion of a pulsating hemisphere, and it is cooled and damped by ferrofluid. The tweeter crosses over at 2,000 Hz to an 8-inch acoustic-suspension woofer operating in an enclosed volume of 930 cubic inches. The quarter-section crossover network uses an air-core inductor and a computer-grade nonpolar capacitor.

The system's impedance is rated at 6 ohms nominal and 4 ohms minimum. Other specifications include a sensitivity of 90 dB sound-pres-sure level (SPL) at 1 meter with an input of 2.83 volts, a low-frequency resonance of 59 Hz (with the bass output down 3 dB at 46.5 Hz and 6 dB at 39 Hz), and a recommended amplifier driving power of between 15 and 150 watts.

The wooden cabinet of the Allison LC 110 measures 18 inches high, 11-1/2 inches wide, and 7-1/2 inches deep, and each speaker weighs 16-1/2 pounds. The cabinet is finished in walnut-grain vinyl. The removable sculptured grille, made of black perforated plastic, snaps into a groove around the speakerboard. The spring-loaded connectors recessed into the rear of the cabinet accept the stripped ends of speaker wires or dual banana plugs.
